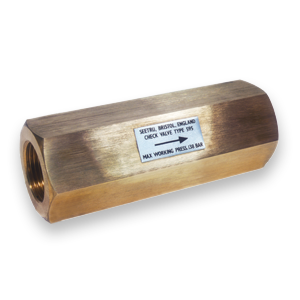

The 595 In-line Check Valve

Datasheet:


Maximum Working Pressure	-	1/4" & 1/2" BSP valves upto 420 Bar.g 3/4", 1" & 1 1/4" BSP valves upto 138 Bar.g
Maximum Working Temperature	-	200°C (subject to seal material)
Valve Materials	-	Brass Stainless Steel
Seal Materials	-	Viton Nitrile
Connections	-	1/4", 1/2", 3/4", 1" & 1 1/4" BSP female

Design

The 595 In-line check valves are designed to be fitted in air/gas pipe lines and allow only uni-directional flow. The valves are fitted with an elastomer seal for additional sealing tightness
