Compressed Air or Gas

The Seetru range of Flanged safety valves for compressed air and gas are compact, highly efficient and incorporate either Metal-to-Metal sealing or the exclusive Tutchtite– seal technology for repeatable bubble-tight sealing performance: designed for applications including air/gas compressors, specialist gas plants, chemical equipment and piping, pressure vessels, thermal relief and medical gases etc.

These valves are manufactured from stainless steel and offer both DIN and ANSI flanged connections, for applications up to 250°C. Manufactured in accordance with a wide range of international standards and approvals such as TÜV (Germany) to AD Merkblatt A2, National Board UV Stamp to ASME Section VIII Division 1, EAC customs union (Russia, Belarus and Kazakhstan) and compliant with the requirements of the Pressure Equipment Directive, PED (CE marked).

94610

Flanged Safety Relief Valve with Metal to Metal sealing

10mm Bore

DN15 (1/2"), DN20 (3/4") or DN25 (1") DIN or ANSI inlet

Set Pressures from 0.3 to 28 Bar g.

94615

Flanged Safety Relief Valve wiith Metal to Metal sealing

15mm Bore

DN25 (1") DIN or ANSI inlet connections

Set Pressure from 0.3 to 28 Bar g.

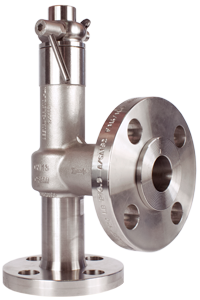

64613

Flanged Safety Relief Valve with Elastomer Rubber Sealing

13mm Bore

DN20 (3/4") or DN25 (1") DIN or ANSI inlet connections

Set Pressures from 0.32 to 49.0 Bar g.

These valves are available with a range of sealing materials and technologies as well as a choice of manual relieving devices to suit application requirements.
