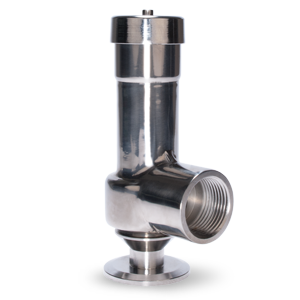

ryType 6L0 - Clean Service Enclosed Discharge Safety Relief Valve for Liquids |
|||||||||||||||||||||||||||||||||||||||
|
Datasheet:  |
|
|||||||||||||||||||||||||||||||||||||
Flows Rates:
See datasheet
Product Description:
Clean Service Enclosed Discharge Safety Relief Valve for Liquids, available with either 10 or 13mm nominal bore.
Notes:
Relieving pressure is set pressure +25%
Reseating pressure is set pressure -20% (Below 3 Bar g.-0.6 Bar g.)
Tri-Clamp® compatible generally in accordance with ASME BPE 2005 & BS 4825-3
Process Contact Surface
In accordance with ASME BPE-2005 Table SF-5.
Surface designation Ra Max 15 µinches, 0.4 µm, Electropolished.
Other Surfaces
Not greater than 60 µinches, 1.5 µm.
Elastomer soft sealing specifically developed for food & pharmaceutical industries.
Compliant to:
1. FDA 21 CFR 177.2600
2. United States Pharmacopoeia (USP) Class VI
3. SP3A Sanitary Standards for Multiple Use Rubber Dairy Equipment No 18-03.
See datasheet
Product Description:
Clean Service Enclosed Discharge Safety Relief Valve for Liquids, available with either 10 or 13mm nominal bore.
Notes:
Relieving pressure is set pressure +25%
Reseating pressure is set pressure -20% (Below 3 Bar g.-0.6 Bar g.)
Tri-Clamp® compatible generally in accordance with ASME BPE 2005 & BS 4825-3
Process Contact Surface
In accordance with ASME BPE-2005 Table SF-5.
Surface designation Ra Max 15 µinches, 0.4 µm, Electropolished.
Other Surfaces
Not greater than 60 µinches, 1.5 µm.
Elastomer soft sealing specifically developed for food & pharmaceutical industries.
Compliant to:
1. FDA 21 CFR 177.2600
2. United States Pharmacopoeia (USP) Class VI
3. SP3A Sanitary Standards for Multiple Use Rubber Dairy Equipment No 18-03.
|
