Home / Products / Valves / Refrigeration / Type 319 10mm Nominal Bore

send us an enqu

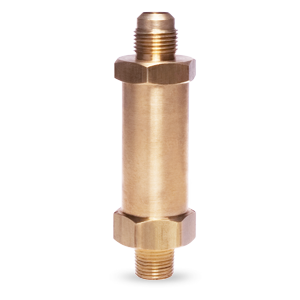

10mm Nominal Bore Inline Safety Relief Valve

Datasheet:


Min. Pressure	-	13.50 bar g. (195.75 psi g.)
Max. Pressure	-	50.00 bar g. (725.00 psi g.)
Temperature Range	-	-30 °C to 200 °C (subject to seal material)
Flow Area	-	70.85 mm² (9.5 mm inlet bore diameter)
Inlet Connection(s)	-	3/8" or 1/2" NPT
Outlet Connection(s)	-	1/2" or 5/8" Flare
Flow Rate	-	474.00 to 1692.00 kg/hr.
Materials	-	Brass
Seal Materials	-	Bonded elastomer
Test Certification	-	Included - supplied Free of charge
Approvals available	-	UKCA - PE(S)R BS EN ISO 4126-1 Pressure Equipment Directive, PED (CE marked) ASME Section VIII Division 1 EAC customs union (Russia, Belarus and Kazakhstan)

Flows Rates:
Flow calculated based upon: Air @ 0°C and 1013 mbar and are for guidance only, contact Seetru for help in sizing to your specifications.

Product Description:
10mm Nominal Bore Inline Safety Relief Valve for Refrigerants
Notes:
Relieving pressure is set pressure +10%
Reseating pressure is set pressure -15%
