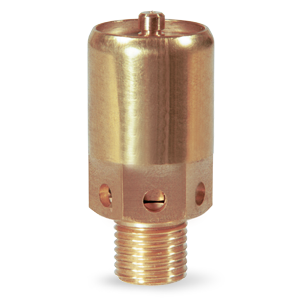

8mm Bore Atmospheric Discharge Safety Relief Valve

Datasheet:


Min. Pressure	-	0.27 bar g. (3.92 psi g.)
Max. Pressure	-	5.00 bar g. (72.50 psi g.)
Temperature Range	-	0 °C to 150 °C (subject to seal material)
Flow Area	-	48.99 mm² (7.9 mm inlet bore diameter)
Inlet Connection(s)	-	1/4" to 3/8" BSP, BSPT or NPT
Flow Rate	-	14.68 to 105.30 kg/hr.
Materials	-	Brass
Seal Materials	-	Silicone Ethylene Propylene
Test Certification	-	Included - supplied Free of charge
Approvals	-	UKCA - PE(S)R BS EN ISO 4126-1 Pressure Equipment Directive, PED (CE marked) EAC customs union (Russia, Belarus and Kazakhstan)

Flows Rates:
Flow calculated based upon: Steam in accordance with TÜV and are for guidance only, contact Seetru for help in sizing to your specifications.

Product Description:
8mm Nominal Bore Atmospheric Discharge Safety Relief Valve for Steam

Notes:
Relieving pressure is set pressure +10% (0.1 bar g. below 1.0 bar g.)
Reseating pressure is set pressure -10% (0.3 bar g. below 3.0 bar g.)
